PRISMA WASH 100™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

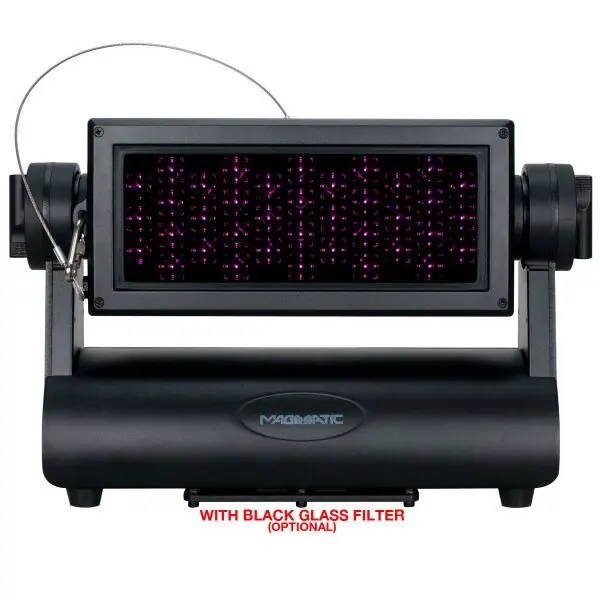

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

Features:

IP65 Rated Exterior High-Power UV Wash Luminaire
Scoop LED Reflector Design
90 Degree Wide Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light Output
Optional Black Glass Diffusion Filter

Specifications:

SOURCE:

(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

_{*Test lab conditions. May vary depending on several factors including but not limited to:Â}

_{Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.}

PHOTOMETRIC DATA:

90 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS:
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION:
Rugged IP65 Rated Aluminum Housing

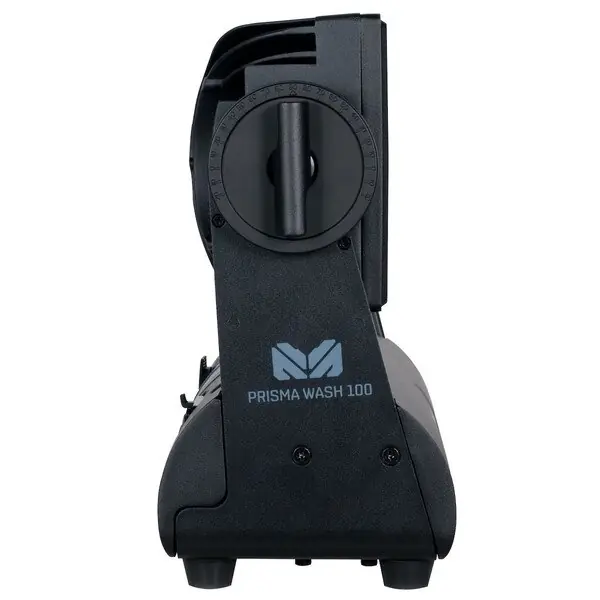

Manual Adjustable Tilt Position

CONTROL:
Multiple DMX Channel Modes

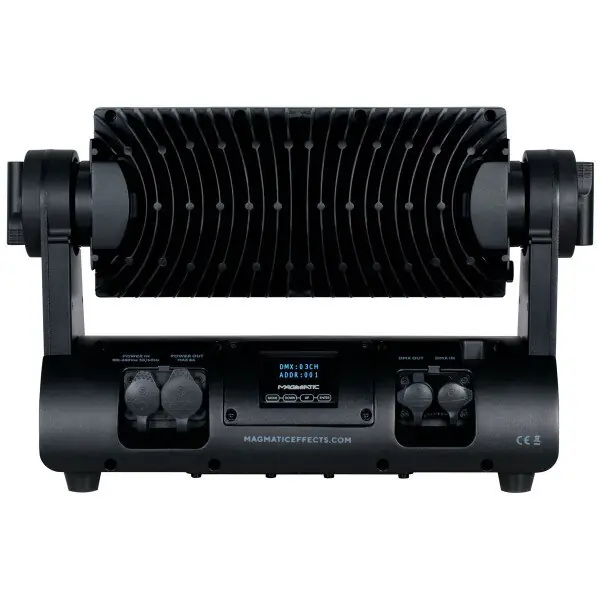

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS:
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT:
Length: 17.24” (438mm)
Width: 5.82” (148mm)
Vertical Height: 11.29” (287mm)
Weight: 18.5 lbs. (8.4 kg)

ELECTRICAL:
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL:
Ambient Temperature (Ta max) 104°F (40°C)
Air Cooled

APPROVALS / RATINGS:
CE | cETLus | IP65

PRISMA WASH 100 USER MANUAL .pdf
PRISMA WASH 100 SPEC SHEET .pdf
Prisma Wash 100 DMX Traits.pdf
MAGMATIC PRISMA WASH 100 – DIMENSIONS .pdf
