Description

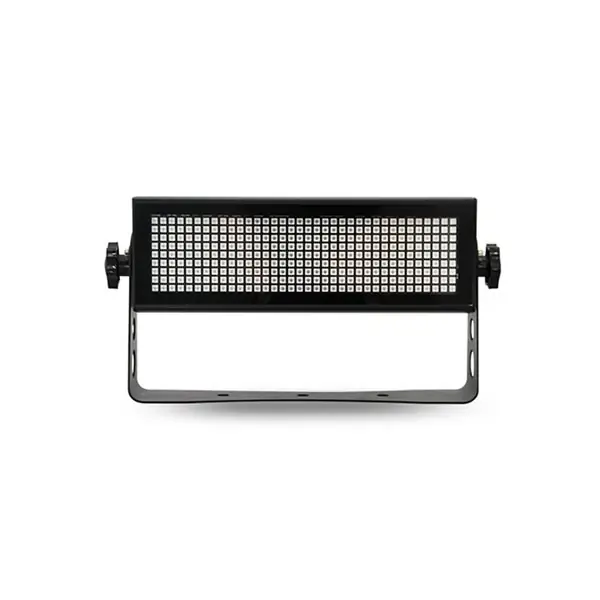

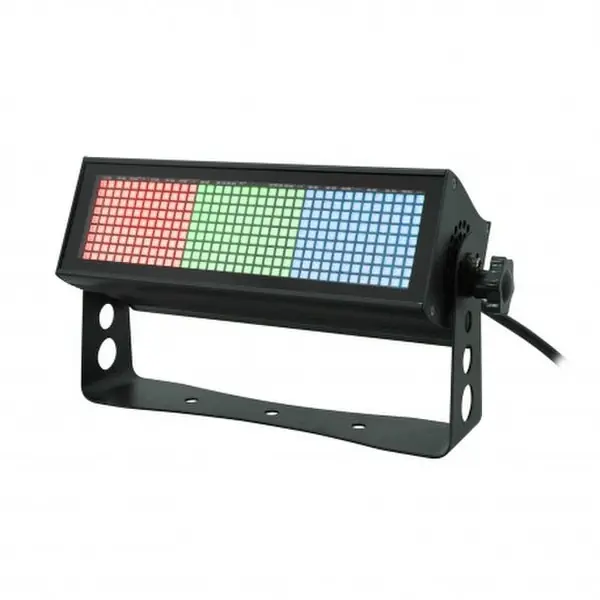

The XS LED Strobe RGB is an immensely bright, versatile fixture from Mega-Lite. It is equipped with a total of 324 RGB SMD LEDs. The LEDs have a wide 140º LED angle and the unit can operate as a wash or strobe. The XS LED Strobe RGB has 3 segments of control. Line up multiple units together in matrix to create chases and other eye-catching effects. The XS LED Strobe RGB is controlled via DMX 512. The unit has dimmer, red, green, blue, strobe, macro and 3 segment macro channels and 4 modes of operation. It is built with 5 pin XLR in and out connectors and PowerCon in and out connectors.
Specifications:

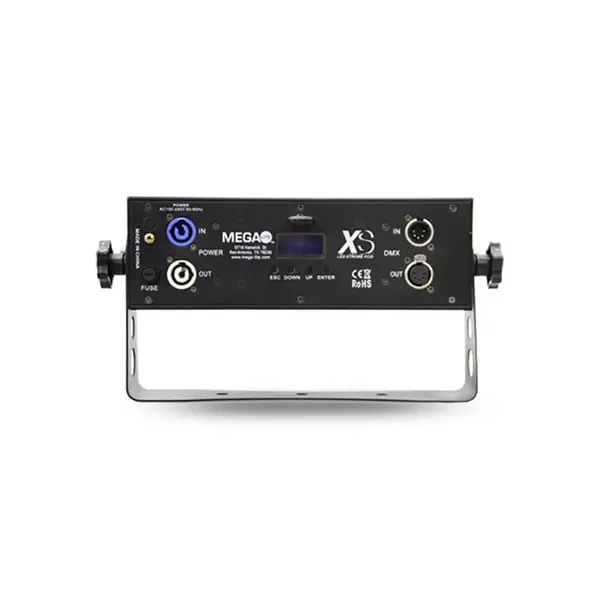

- DMX Connectors: 5 pin XLR connectors in and out
- Thermal:Maximum ambient temperature 104°; Maximum surface temperature 140°

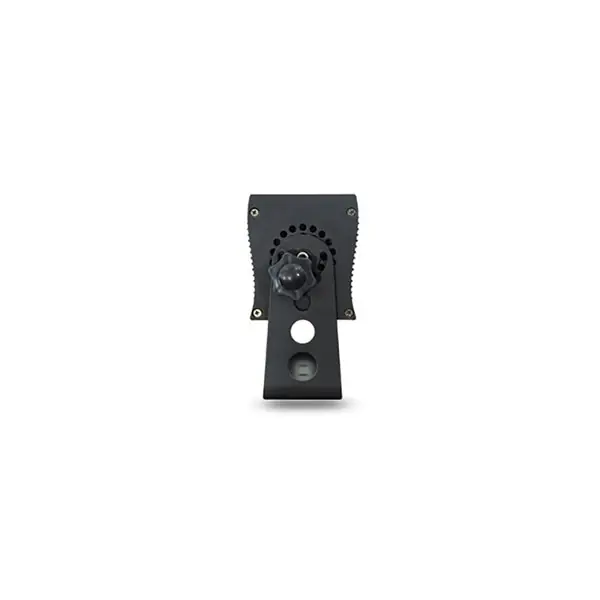

- Fastening System: Single Mounting Yoke
- Display: Digital
- Power connection: Power Con in & out
- Size: 13.66†x 4†x 7.12
- Weight: 6.5lbs
- LED Quantity: 324 RGB SMD LEDS
- LED Angle: 140°
- Power Input Voltage: 110V-240 50/60 Hz
- Ballast: Electronic auto switching
- Power Consumption: Watts: 165; Amps: 2.49
- LED Watts: 0.50
- LED Lifetime: 60 to 100 thousand hours
- Protocol: DMX 512
- Control Options: Display Control, Master Slave
Modes:
- Mode 1: 3 Channels R,G,B,
- Mode 2: 7 Channels Dimmer, R, G, B, Strobe, Macro
- Mode 3: 8 Channels Dimmer, R, G, B, Strobe, Macro, 3 Segment Macro
- Mode 4: 9 Channels R, G, B, X3
