At A Glance:

• 200W white LED light engine, 60,000 hours
• Fast and precise zoomable beam angle (13°- 27°)
• 8-16 bit smooth pan and tilt resolution

Tech Specs

200W LED Moving Spot:

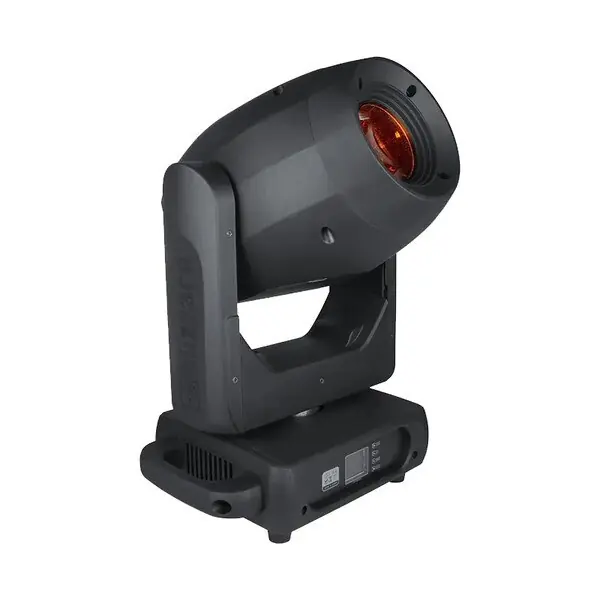

G-Maxâ„¢ 200 is an LED moving head that boasts some serious power with its extremely bright, 200W LED light engine, and it’s 13°- 27° motorized zoom is perfect for short or long throws. It is equipped with ultra-fast 3-phase pan/tilt motors plus an 8 color + open color wheel, 7x static metal gobos +open, and 7x rotating glass gobos +open which can create amazing gobo morphing effects and mid-air projections.

Optical:

• 200W white LED light engine, 60,000 hours
• Fast and precise zoomable beam angle (13°- 27°)
• Flicker-free LED
• Gobo size: 22.9mm outer, 18mm inner, 2mm max thickness

Control:

• Protocol: USITT DMX-512
• 3/5-pin DMX in/out
• DMX channels: 16/19-channel modes
• Easy-to-use 5-button control panel with LCD display
• Operating modes: DMX512, master/slave, auto mode

Power & Current:

• 90-250VAC, 50-60 Hz
• Power consumption: 283W, 2.49A, PF: .99
• PowerCONâ„¢ TRUE1-compatible AC power In/Out connectors

Dimensions:

• 21.7″ x 9.8″ x 15″
• 35.1lbs

Luminous Intensity:

• 38,405 Lux @ 2.5M (narrow), 13,058 Lux @ 2.5M (wide)
• 9,937 Lux @ 5M (narrow), 3,241 Lux @ 5M (wide)
• 4,668 Lux @ 7.5M (narrow), 1,543 Lux @ 7.5M (wide)
• 2,746 Lux @ 10M (narrow), 916 Lux @ 10M (wide)

Warranty:

• 2 Year – Extendable
